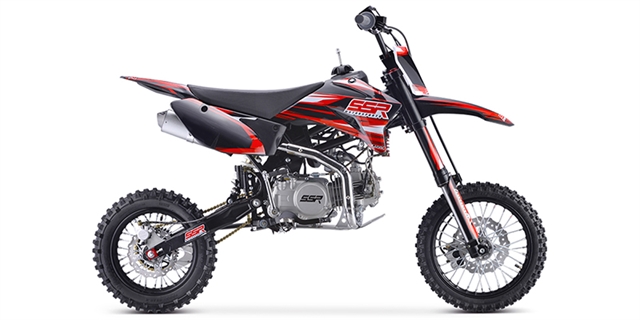

2021 SSR Motorsports SR140TR
Stock #101232
ENGINE
- Engine Type YX™, Single Cylinder, 4 Stroke, Air / Oil Cooled
- Displacement 140 cc
- Bore x Stroke 55 mm x 59 mm
- Rated Output 12 hp @ 8,500 rpm
- Fuel Supply Mikuni® Carburetor, 26 mm
- Ignition CDI
- Starter Kick
- Transmission 4-up Manual
CHASSIS
- Front Suspension Rebound / Compression Adjustable Forks, Inverted
- Rear Suspension 290 mm Spring Pre-load & Rebound Adjustable Shock, 1,000 pounds/inch
- Front Brake Disc
- Rear Brake Disc
- Front Wheel / Tire Steel / 60/100 - 14
- Rear Wheel / Tire Steel / 80/100 - 12
- Frame Double Bar Steel Frame w/ Sub-frame
- Swingarm Steel, "Straight" Type
DIMENSIONS
- Wheelbase 48 inches
- Seat Height 32 inches
- Ground Clearance 12 inches
- Fuel Tank 1.45 gallons
- Weight 157 pounds
- L x W x H 66 x 29.5 x 43 inches
- Status:New
- Vehicle:2021 SSR Motorsports SR140TR
- Model Number:#SR140TR
- Fuel Type:Gasoline
- Transmission:Manual
- Color:Black
- Stock Number:101232
- Location:Iron Hill Powersports
- Warranty:Manufacturer's w/ Extended Available
BRAKES
- Front Brake Type:Hydraulic Disc
- Rear Brake Type:Hydraulic Disc
ENGINE
- Bore (in):2.17
- Bore (mm):55
- Carburetion Brand:Mikuni
- Carburetion Type:Carburetor
- Carburetor Size (mm):26
- Carburetor:Yes
- Cooling:Air / Oil
- Cylinders:1
- Displacement (cc):140
- Displacement (ci):8.5
- Engine Brand Name:YX™
- Engine Stroke:4-Stroke
- Engine Type:Single-Cylinder
- Fuel Requirements:Regular
- Fuel Type:Gas
- Horsepower (bhp):12
- Horsepower (kW):9
- Horsepower RPM:8500
- Number Of Carburetors:1
- Starter:Kick
- Stroke (in):2.32
- Stroke (mm):59
- Valve Configuration:SOHC
- Valves Per Cylinder:2
- Valves:2
EXTERIOR
- Body Material:Plastic
- Chain Guard:Yes
- Exhaust Guard:Yes
- Foot Peg Location:Driver
- Frame:Steel
- Top Crown Material:Aluminum
SEATS
- Number Of Seats:1
- Seat Height (in):32
- Seat Height (mm):812.8
- Seat Location:Driver
- Seat Material:Vinyl
- Seat Type:One-Piece
STEERING
- Steering Control:Handlebar
SUSPENSION
- Front Adjustable Rebound Damping:Yes
- Front Suspension Type:Inverted Fork
- Number Rear Shock Absorbers:1
- Rear Adjustable Rebound Damping:Yes
- Rear Adjustable Shock / Spring Pre-Load:Yes
- Rear Suspension Material:Steel
- Rear Suspension Size (in):11.4
- Rear Suspension Size (mm):290
- Rear Suspension Type:Twin Sided Swing Arm
TECHNICAL SPECIFICATIONS
- Dry Weight (kg):71.2
- Dry Weight (lbs):157
- Engine Displacement to Weight (cc):0.89
- Fuel Capacity (gal):1.45
- Fuel Capacity (l):5.5
- Ground Clearance (in):12
- Ground Clearance (mm):304.8
- Height (in):43
- Height (mm):1092.2
- Length (ft):5.5
- Length (ft/ft):5
- Length (ft/in):6
- Length (in):66
- Length (mm):1676.4
- Wheelbase (in):48
- Wheelbase (mm):1219.2
- Width (in):29.5
- Width (mm):749.3
TRANSMISSION
- Number Of Speeds:4
- Primary Drive (Rear Wheel):Chain
- Transmission Type:Manual
WHEELS & TIRES
- Front Tire (Full Spec):100/60 R14
- Front Tire Aspect Ratio:60
- Front Tire Width:100
- Front Wheel Diameter:14
- Rear Tire (Full Spec):100/80 R12
- Rear Tire Aspect Ratio:80
- Rear Tire Width:100
- Rear Wheel Diameter:12
- Tube / Tubeless:Tubed
- Wheels Composition:Steel
