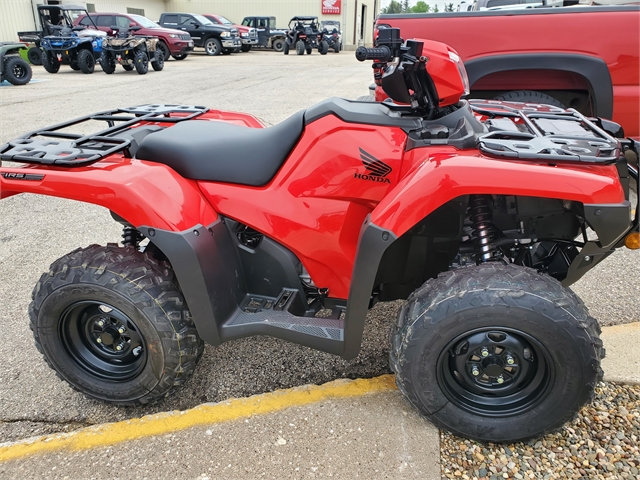

2022 Honda FourTrax Foreman Rubicon 4x4 Automatic DCT EPS


737 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2022 Honda FourTrax Foreman Rubicon 4x4 Automatic DCT EPS . I'm in the area and you can reach me at or on my phone at .




  • Status:
    New
  • Vehicle:
    2022 Honda FourTrax Foreman Rubicon 4x4 Automatic DCT EPS
  • Model Number:
    TRX520FA6N
  • Location:
    Iron Hill Powersports
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Diameter (in):
    7.5
  • Front Brake Diameter (mm):
    190
  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Diameter (in):
    6.7
  • Rear Brake Diameter (mm):
    170
  • Rear Brake Type:
    Hydraulic Disc

DRIVE LINE

  • Differential Lock Location:
    Front
  • Driveline Brand:
    TraxLok™
  • Driveline Type:
    Selectable 4X2 / 4X4
  • Number Of Driveline Modes:
    3

ENGINE

  • Bore (in):
    3.78
  • Bore (mm):
    92
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    9.5
  • Cooling:
    Liquid
  • Cylinders:
    1
  • Displacement (cc):
    518
  • Displacement (ci):
    31.6
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Injector Size (mm):
    36
  • Fuel Injector:
    Yes
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    2.81
  • Stroke (mm):
    71.5
  • Valve Configuration:
    OHV
  • Valves Per Cylinder:
    4
  • Valves:
    4

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Body Material:
    Plastic
  • Brush Guard:
    Yes
  • CV Boot Cover:
    Yes
  • Floor Board Location:
    Driver
  • Frame:
    Steel

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Light

LIGHTS

  • Type:
    Halogen

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    35.8
  • Seat Height (mm):
    909.3
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar
  • Steering Type:
    Power

STORAGE

  • Capacity (kgs):
    44.9
  • Capacity (kgs):
    84.8
  • Capacity (lbs):
    187
  • Capacity (lbs):
    99
  • Fender Storage Location:
    Front

SUSPENSION

  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Suspension Type:
    Independent Double Wishbone
  • Front Travel (in):
    7.3
  • Front Travel (mm):
    185.4
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Independent Double A-Arm
  • Rear Travel (in):
    8.5
  • Rear Travel (mm):
    215.9

TECHNICAL SPECIFICATIONS

  • Fuel Capacity (gal):
    3.9
  • Fuel Capacity (l):
    14.8
  • Fuel Capacity Reserve (gal):
    1.3
  • Fuel Capacity Reserve (l):
    4.9
  • Ground Clearance (in):
    9.4
  • Ground Clearance (mm):
    238.8
  • Height (in):
    48.6
  • Height (mm):
    1234.4
  • Length (ft):
    7.04
  • Length (ft/ft):
    7
  • Length (ft/in):
    0.5
  • Length (in):
    84.5
  • Length (mm):
    2146.3
  • Towing Capacity (kgs):
    599.7
  • Towing Capacity (lbs):
    1322
  • Turning Radius (ft):
    11.5
  • Wet Weight (kg):
    330.7
  • Wet Weight (lbs):
    729
  • Wheelbase (in):
    50.9
  • Wheelbase (mm):
    1292.9
  • Width (in):
    47.4
  • Width (mm):
    1204

TRANSMISSION

  • Number Of Speeds:
    5
  • Primary Drive (Engine / Transmission):
    Gear
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Type:
    Manual / Automatic Clutch

WHEELS & TIRES

  • Front Tire (Full Spec):
    Maxxis® 25 x 8-12
  • Front Tire Diameter (in):
    25
  • Front Tire Width:
    8
  • Front Wheel Diameter:
    12
  • Rear Tire (Full Spec):
    Maxxis® 25 x 10-12
  • Rear Tire Diameter (in):
    25
  • Rear Tire Width:
    10
  • Rear Wheel Diameter:
    12
  • Tire Brand:
    Maxxis®
  • Wheels Composition:
    Steel
